NPT Nickel Plated Cable Glands Atex Unarmoured Ex d IP68

NPT cable glands unarmoured nickel plated IP66 - IP68 made by Atex Delvalle are used for passing, holding and compressing cables between two compartments, such as junction boxes, cabinets, electrical boxes or devices requiring sealing against dust, dirt or water.

NPT Nickel Plated Cable Glands Atex Unarmoured Ex d IP68 · GlakorGlakor
NPT Nickel Plated Cable Glands Atex Unarmoured Ex d IP68 · GlakorGlakor
NPT Nickel Plated Cable Glands Atex Unarmoured Ex d IP68 · GlakorGlakor
NPT Nickel Plated Cable Glands Atex Unarmoured Ex d IP68 · GlakorGlakor

This product has the following certificates

  • Logo IECEx · Glakor
    IECEx
  • Logo IP66 · Glakor
    IP66
  • Logo IP68 · Glakor
    IP68
  • Logo 5 year anti-corrosion · Glakor
    5 year anti-corrosion
  • Logo Chemical resistant · Glakor
    Chemical resistant
  • Logo Corrosion resistant · Glakor
    Corrosion resistant
  • Logo Easy to clean · Glakor
    Easy to clean
  • Logo Scrach resistant · Glakor
    Scrach resistant
  • Logo Temperature resistant · Glakor
    Temperature resistant

Description

Cable glands unarmoured IP66 - IP68 made by Atex Delvalle are used for passing, holding and compressing cables between two compartments, such as junction boxes, cabinets, electrical boxes or devices requiring sealing against dust, dirt or water.

Material:

  • Nickel-plated brass
  • Stainless steel AISI303L
  • Stainless steel AISI304L
  • Stainless steel AISI316L

O-ring: NBR or silicone (optional)

Thread:

  • Entry
  • Conic

Cable glands unarmoured:

  • EX D
  • EX E

Normative

Normative and marking:

  • II 2G Exd/e IIC Gb II 1D Ex ta IIIC Da I M2 Exd/e I Mb
  • EN  60079-0:2009,  60079-1:2007, 60079-31:2009

Protection class: EN 60529 IP66 / IP68
Application area:

  • Zones 1, 2, 21 and 22
  • Group Gas IIA, IIB and IIC

Custom Made Solutions
We offer multiple solutions

NPT Nickel Plated Cable Glands Atex Unarmoured Ex d IP68 · Glakor
Do you need solutions?
2021 product catalogues

Material:

  • Nickel-plated brass
  • Stainless steel AISI303L
  • Stainless steel AISI304L
  • Stainless steel AISI316L

O-ring: NBR or silicone (optional)

Thread:

  • Entry
  • Conic

Cable glands unarmoured:

  • EX D
  • EX E
NPT Nickel Plated Cable Glands Atex Unarmoured Ex d IP68 · Glakor

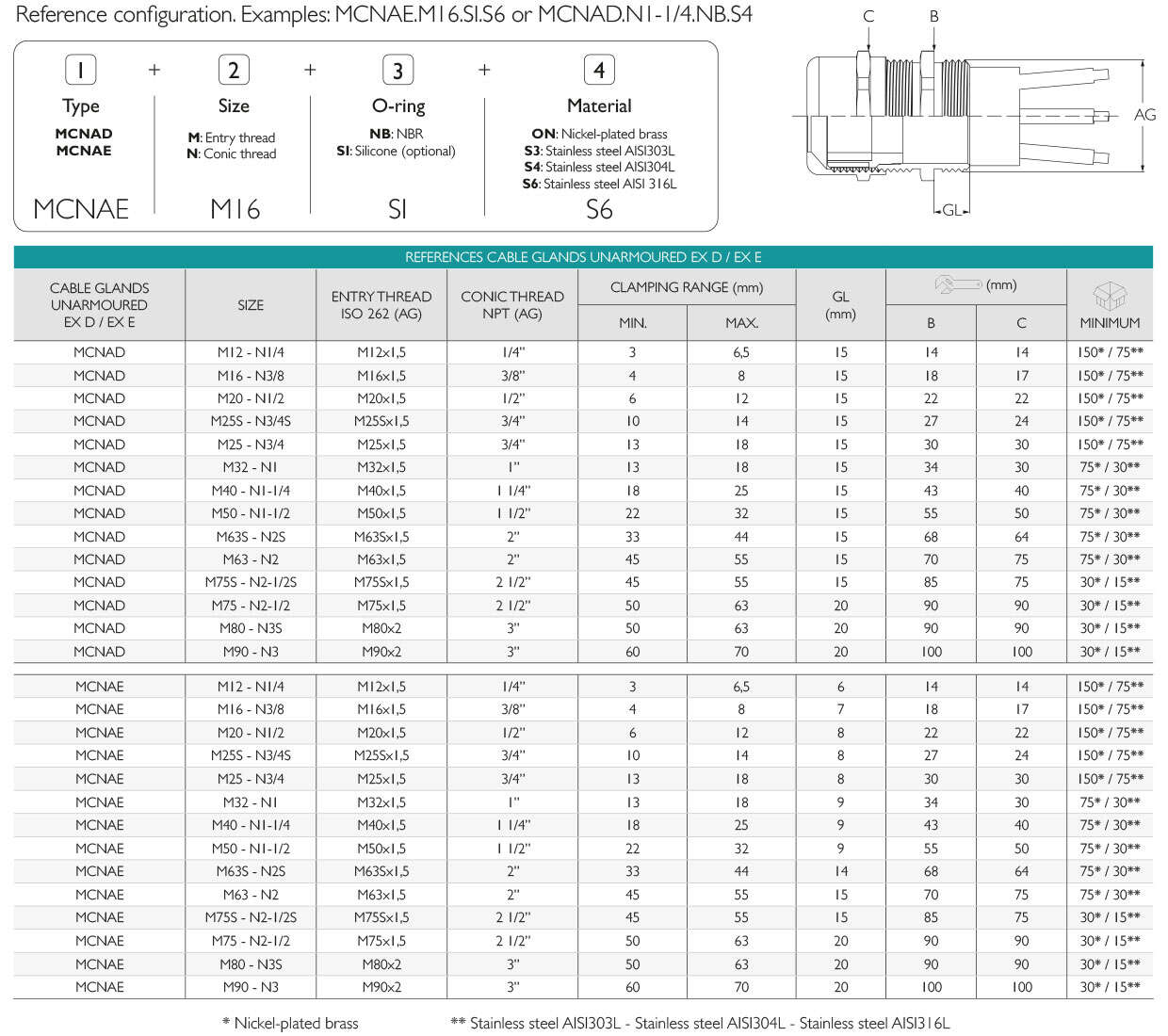

Sketches
