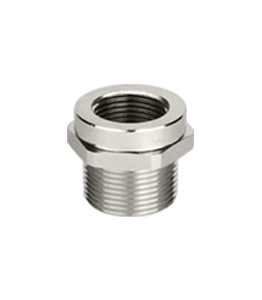

Nickel Plated Reduced Metric Thread Ex d/e IP66 - IP68

Nickel plated reducer Ex d/e IP66 - IP68 metric thread. Operating temperature of -70°C to + 400°C.

Let us help you!

Nickel Plated Reduced Metric Thread Ex d/e IP66 - IP68 · GlakorGlakor

This product has the following certificates

  • Logo IP66 · Glakor
    IP66
  • Logo IP68 · Glakor
    IP68

Description

Reducer Ex d/e IP66 - IP68 metric and NPT.

  • Material:
    • Nickel-plated brass
    • Stainless steel AISI316L
  • Operating temperature of -70°C to + 400°C.

Normative

  • Protection class: IP66 / IP68
  • Application fields: Surface - Group II • Mines - Group I
  • Protection type and normative:​
    • Ex db IIC • Ex eb II (gas) • Ex tb IIIC (polvos) • Ex db I • Ex eb I (minas)
    • Atex: EN 60079-0:2012 • EN 60079-1:2014 • EN 60079-7:2015 • EN 60079-31:2014 • EN 60529:1991
    • IECEx: IEC 60079-0:2011 • IEC 60079-1:2014 • IEC 60079-7:2015 • IEC 60079-15:2010 • IEC 60079-31:2013 • IEC 60529:1989

Custom Made Solutions
We offer multiple solutions

Nickel Plated Reduced Metric Thread Ex d/e IP66 - IP68 · Glakor
Do you need solutions?
2021 product catalogues
Customize this product with the following components:
Nickel Plated Reduced NPT Thread Ex d/e IP66 - IP68 · GlakorGlakor
Nickel plated reducer Ex d/e IP66 - IP68 NPT thread. Operating temperature of -70°C to + 400°C....
Stainless Steel Reduced Metric Thread Ex d/e IP66 - IP68 · GlakorGlakor
Stainless steel reducer Ex d/e IP66 - IP68 metric thread. Operating temperature of -70°C to +...
Stainless Steel Reduced NPT Thread Ex d/e IP66 - IP68 · GlakorGlakor
Stainless steel reducer Ex d/e IP66 - IP68 NPT thread. Operating temperature of -70°C to +...
Nickel Plated Reduced Metric Thread Ex d/e IP66 - IP68 · Glakor

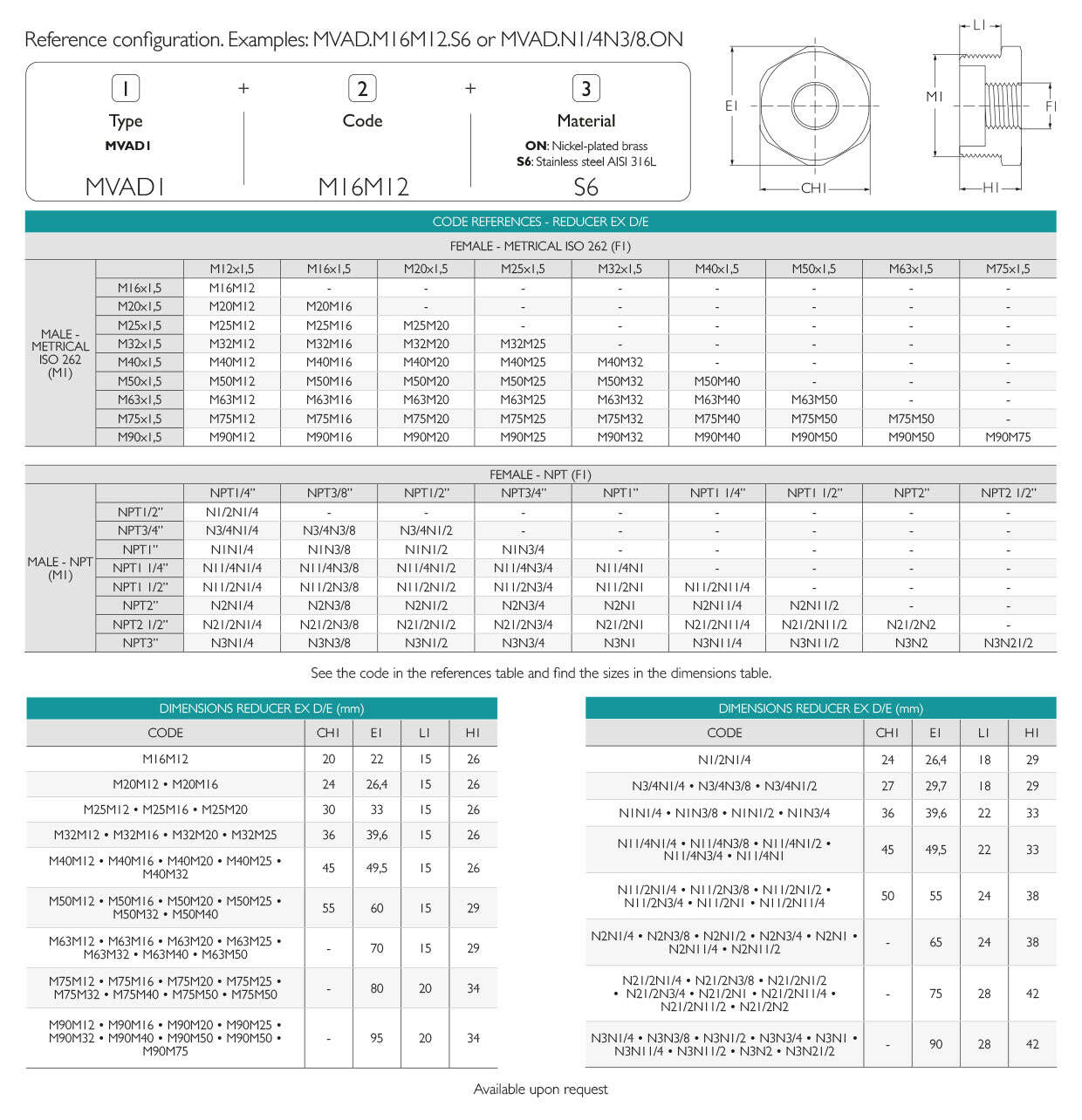

Sketches
