Polyamide Ventilation Plugs IP68

Polyamide ventilation plugs IP68 reduce the adverse effects of humidity in the environment circulation by preventing pressure increase inside the enclosure and limiting temperature increase through air.

is design for venting air and preventing water intake. Through it excellent permeability, Screw-in Vents balance the air pressure difference between inside of housing and environmental condition and low the pressure on seal gaskets, therefore it prolongs seal gaskets service life and improve the reliability of the device.The micro-pore membrane structure build-in Screw-in Vent provides an effective barrier from dust and dirt and still allows the product to breathe with changing environmental conditions.

Polyamide Ventilation Plugs IP68 · GlakorGlakor
Polyamide Ventilation Plugs IP68 · GlakorGlakor
Polyamide Ventilation Plugs IP68 · GlakorGlakor

This product has the following certificates

  • Logo IP68 · Glakor
    IP68

Description

Ventilation plugs (polyamide, nickel plated and stainless steel) reduce the adverse effects of humidity in the environment circulation by preventing pressure increase inside the enclosure and limiting temperature increase through air.

is design for venting air and preventing water intake. Through it excellent permeability, Screw-in Vents balance the air pressure difference between inside of housing and environmental condition and low the pressure on seal gaskets, therefore it prolongs seal gaskets service life and improve the reliability of the device.The micro-pore membrane structure build-in Screw-in Vent provides an effective barrier from dust and dirt and still allows the product to breathe with changing environmental conditions. This prevents pressure from building up and damaging enclosure seals,exposing sensitive components to water and debris.Equipment used in the telecommunications industry is subjected to rapid temperature fluctuations, a variety of particulates, and exposure to wind, precipitation and solar radiation. Screw-in Vents effectively protect them against the negative effects of pressure differentials caused by temperature changes and provide an effective barrier against dust, water, salts and other corrosive liquids.
Especially Its threaded design ensures secure mechanical fastening, its durable designs keep it able to used in extremely harsh environments in the field. Its unique property makes it find the wide application in shipboard telecommunication and alarm system.

  • Material:
    • Polyamide PA6
    • Nickel plated
    • Stainless steel AISI 303L
    • Sealing ring: NBR
    • Membrane: Hydrophobic-Oleophobic
    • Lock nut included
    • Protection: IP68
    • Temperature resistance: -40°C +105°C
      • Benefits
        • Pressure compensating seal prevents build up of pressure inside of electronic enclosure due to enviromental temperature cycling.
        • It extends the life time on complete system with it’s basic feature.
        • Prevents the enclosures against corrosion.

      Discover the advantages

      Ventilation plugs (polyamide, nickel plated and stainless steel) reduce the adverse effects of humidity in the environment circulation by preventing pressure increase inside the enclosure and limiting temperature increase through air.

      Normative

      • Protection: IP68
      • Temperature resistance: -40°C +105°C

      Applications

      • Application area:
        • Automation technology
        • Wind-solar energy
        • Industrial
        • Equipment

      Custom Made Solutions
      We offer multiple solutions

      Polyamide Ventilation Plugs IP68 · Glakor
      Do you need solutions?
      2024 product catalogues
      • Material:
        • Polyamide PA6
        • Nickel plated
        • Stainless steel AISI 303L
      Polyamide Ventilation Plugs IP68 · Glakor

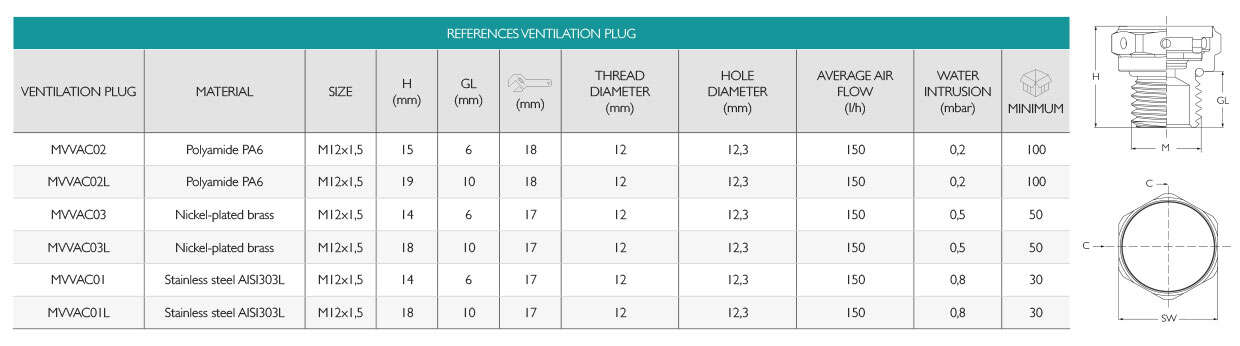

      Sketches

      Polyamide Ventilation Plugs IP68 · Glakor
