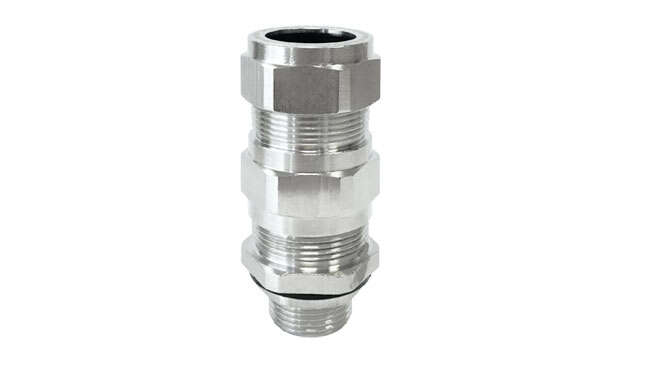

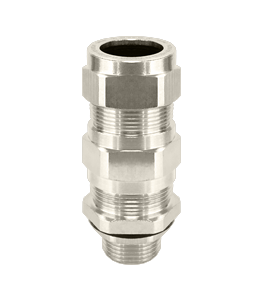

Metric Nickel Double Compression Cable Glands Armoured Atex Ex d/e

Double compression cable glands nickel-plated brass Atex Ex d/e IP66 - IP68 are used for passing, holding and compressing cables between two compartments, such as junction boxes, cabinets, electrical boxes or devices requiring sealing against dust, gas.

Metric Nickel Double Compression Cable Glands Armoured Atex Ex d/e · GlakorGlakor
Metric Nickel Double Compression Cable Glands Armoured Atex Ex d/e · GlakorGlakor
Metric Nickel Double Compression Cable Glands Armoured Atex Ex d/e · GlakorGlakor

This product has the following certificates

  • Logo IECEx · Glakor
    IECEx
  • Logo IP68 · Glakor
    IP68

Description

Double compression Ex cable glands Atex IP66 -IP68 made by Atex Delvalle are used for passing, holding and compressing cables between two compartments, such as junction boxes, cabinets, electrical boxes or devices requiring sealing against dust, gas.

Material:

  • Nickel-plated brass
  • Stainless steel AISI303L
  • Stainless steel AISI304L
  • Stainless steel AISI316L

O-ring: NBR or silicone (optional)

Thread:

  • Entry
  • Conic

Normative

Normative and marking:

  • II 2G Exd/e IIC Gb II 1D Ex ta IIIC Da I M2 Exd/e I Mb
  • EN  60079-0:2009,  60079-1:2007, 60079-31:2009

Protection class: EN 60529 IP66 / IP68
Application area:

  • Zones 1, 2, 21 and 22
  • Group Gas IIA, IIB and IIC

Custom Made Solutions
We offer multiple solutions

Metric Nickel Double Compression Cable Glands Armoured Atex Ex d/e · Glakor
Do you need solutions?
2021 product catalogues

Material:

  • Nickel-plated brass
  • Stainless steel AISI303L
  • Stainless steel AISI304L
  • Stainless steel AISI316L

O-ring: NBR or silicone (optional)

Thread:

  • Entry
  • Conic
Metric Nickel Double Compression Cable Glands Armoured Atex Ex d/e · Glakor

Sketches
