Metric Stainless Steel AISI 316 Plug IP68

Metric stainless steel AISI 316 hexagon plug IP68 are suitable for blocking the passage between two compartments and provide pressure balance between the inside and the outside. They enable to expand the box in the future: junction boxes, electrical boxes or devices that require tightness against the dust, dirt or water.

Metric Stainless Steel AISI 316 Plug IP68 · GlakorGlakor
Metric Stainless Steel AISI 316 Plug IP68 · GlakorGlakor

This product has the following certificates

  • Logo CE · Glakor
    CE
  • Logo IP68 · Glakor
    IP68
  • Logo ROHS · Glakor
    ROHS
  • Logo Chemical resistant · Glakor
    Chemical resistant
  • Logo Corrosion resistant · Glakor
    Corrosion resistant
  • Logo Easy to clean · Glakor
    Easy to clean
  • Logo Scrach resistant · Glakor
    Scrach resistant
  • Logo Temperature resistant · Glakor
    Temperature resistant
  • Logo Waterproof · Glakor
    Waterproof

Description

Metric stainless steel AISI 316 hexagon plug IP68 are suitable for blocking the passage between two compartments and provide pressure balance between the inside and the outside. They enable to expand the box in the future: junction boxes, electrical boxes or devices that require tightness against the dust, dirt or water.

  • Material: Stainless steel AISI 316
  • Thread:
    • Metric
    • PG
  • Sealing ring: NBR
  • Stainless steel lock nut included
  • Protection: IP68
  • Temperature resistance: -40°C +105°C
  • Supports: water, dust, salt, acids, alcohol and oils

Discover the advantages

Stainless steel plugs are placed over other materials.They are corrosion resistant, more robust and durable than any other materials used in the construction field.
They help you to save money thanks to their low maintenance and their long life (over 20-30 years). The aesthetic aspect is also remarkable, as they have great quality and presence.

Normative

  • Protection: IP68
  • Temperature resistance: -40°C +105°C

Applications

  • Road signage
  • Food and beverage
  • Renewable energy
  • Machinery
  • Airports
  • Railway
  • Maritime
  • Electricity
  • Nuclear & thermal power
  • Urban equipment
  • Pharmaceutic and medical

Custom Made Solutions
We offer multiple solutions

Metric Stainless Steel AISI 316 Plug IP68 · Glakor
Do you need solutions?
2024 product catalogues
  • Thread:
    • Metric
    • PG
Customize this product with the following components:
Metric Stainless Steel AISI 304 Plug IP68 · GlakorGlakor
Metric stainless steel AISI 304 hexagon plug IP68 are suitable for blocking the passage between two...
Metric Nickel Plated Plug IP68 · GlakorGlakor
Metric nickel-plated brass hexagon plug IP68 are suitable for blocking the passage between two...
Metric Polyamide Plug IP68 · GlakorGlakor
Metric polyamide plug IP68 are suitable for blocking the passage between two compartments and...
PG Stainless Steel AISI 304 Plug IP68 · GlakorGlakor
PG stainless steel AISI 304 hexagon plug IP68 are suitable for blocking the passage between two...
PG Nickel Plated AISI 304 Plug IP68 · GlakorGlakor
PG nickel plated brass hexagon plug IP68 are suitable for blocking the passage between two...
PG Polyamide Plug IP68 · GlakorGlakor
PG polyamide plug IP68 are suitable for blocking the passage between two compartments and provide...
Atex Plug Ex d/e Nickel-Plated Blind Metric Thread IP68 · GlakorGlakor
Plugs Ex d/e blind metric thread Atex  IP66 - IP68. Operating temperature of -60°C to + 200°C.
Metric Stainless Steel AISI 316 Plug IP68 · Glakor

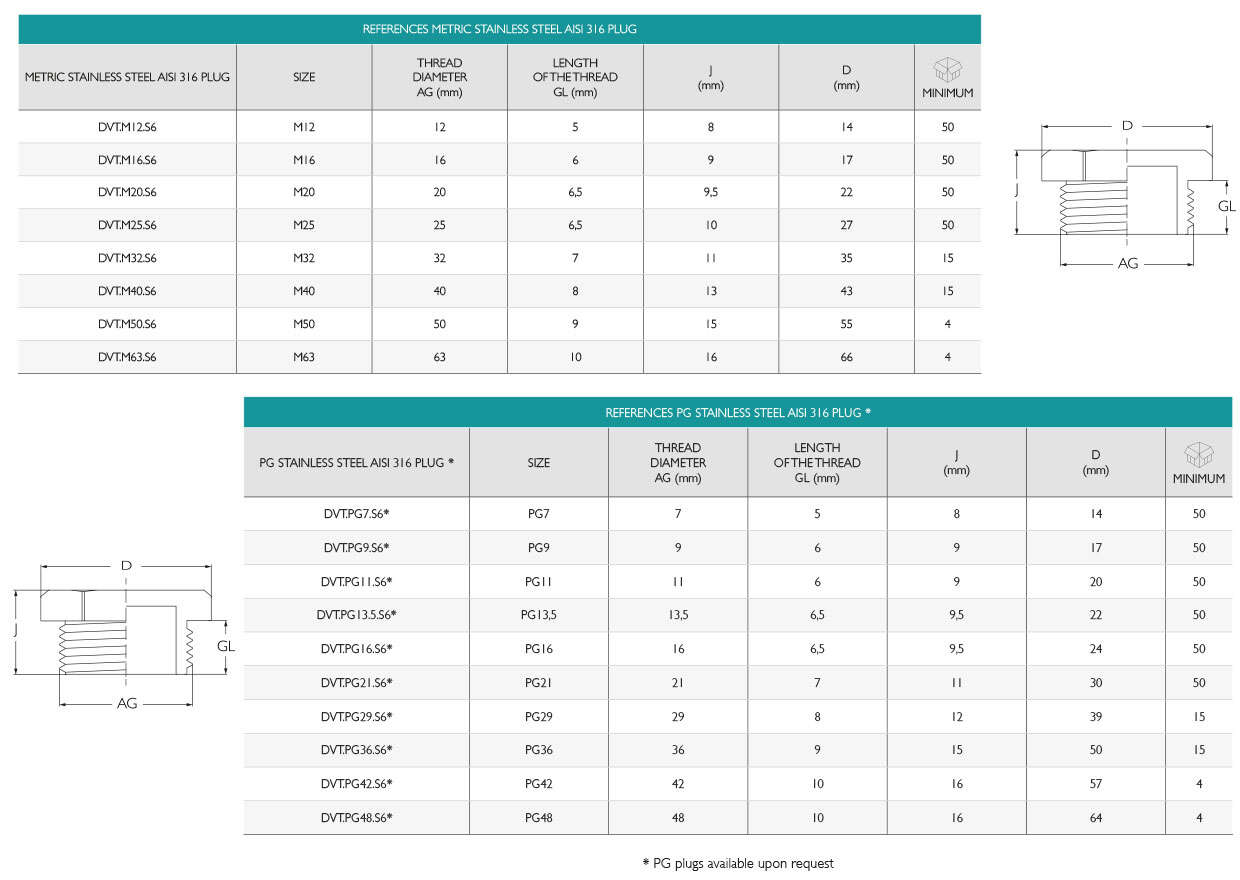

Sketches
