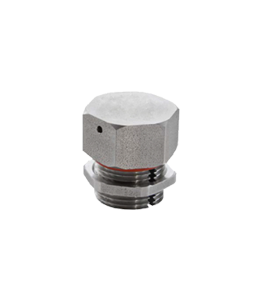

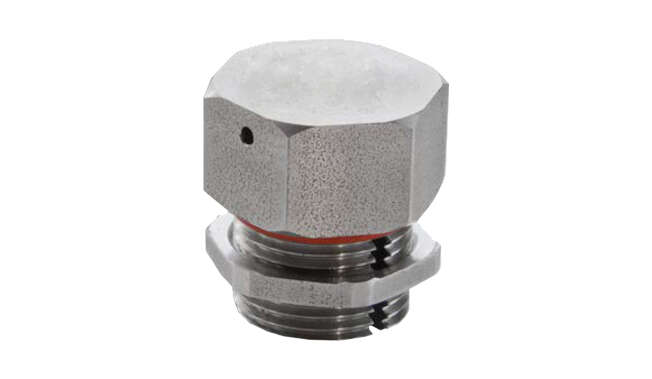

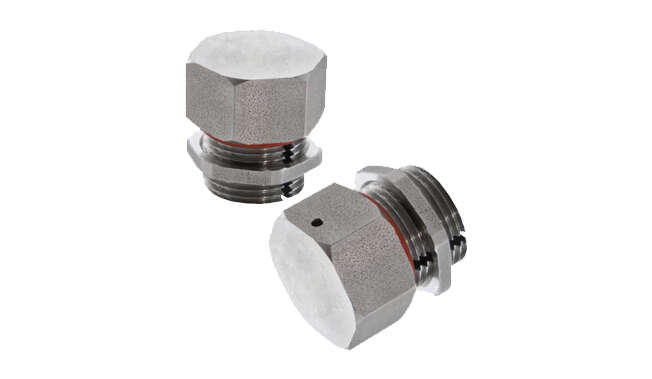

Ex Air Vent Plug Breather and Drainage Valves IP66

Automatic drainage and breather valves are suitable to be used on increased safety, intrinsically safety or watertight enclosures to facilitate the elimination of condensation or vapors developed inside. Thanks to a precise mechanism, it is possible to obtain a continuous drainage and breathing of the junction box, protecting it from the possible formations of internal condensation and thus avoiding the periodic manual discharge, while ensuring a suitable IP degree of protection.
We recomended minimun 2 units per enclosure.



Ex Air Vent Plug Breather and Drainage Valves IP66 · GlakorGlakor
Ex Air Vent Plug Breather and Drainage Valves IP66 · GlakorGlakor

This product has the following certificates

  • Logo IECEx · Glakor
    IECEx
  • Logo IP66 · Glakor
    IP66
  • Logo 5 year anti-corrosion · Glakor
    5 year anti-corrosion
  • Logo Chemical resistant · Glakor
    Chemical resistant
  • Logo Corrosion resistant · Glakor
    Corrosion resistant
  • Logo Easy to clean · Glakor
    Easy to clean
  • Logo Scrach resistant · Glakor
    Scrach resistant
  • Logo Temperature resistant · Glakor
    Temperature resistant
  • Logo Waterproof · Glakor
    Waterproof

Description

Automatic drainage and breather valves are suitable to be used on increased safety, intrinsically safety or watertight enclosures to facilitate the elimination of condensation or vapors developed inside. Thanks to a precise mechanism, it is possible to obtain a continuous drainage and breathing of the junction box, protecting it from the possible formations of internal condensation and thus avoiding the periodic manual discharge, while ensuring a suitable IP degree of protection.
We recomended minimun 2 units per enclosure

is design for venting air and preventing water intake. Through it excellent permeability, Screw-in Vents balance the air pressure difference between inside of housing and environmental condition and low the pressure on seal gaskets, therefore it prolongs seal gaskets service life and improve the reliability of the device.The micro-pore membrane structure build-in Screw-in Vent provides an effective barrier from dust and dirt and still allows the product to breathe with changing environmental conditions. This prevents pressure from building up and damaging enclosure seals,exposing sensitive components to water and debris.Equipment used in the telecommunications industry is subjected to rapid temperature fluctuations, a variety of particulates, and exposure to wind, precipitation and solar radiation. Screw-in Vents effectively protect them against the negative effects of pressure differentials caused by temperature changes and provide an effective barrier against dust, water, salts and other corrosive liquids.
Especially Its threaded design ensures secure mechanical fastening, its durable designs keep it able to used in extremely harsh environments in the field. Its unique property makes it find the wide application in shipboard telecommunication and alarm system.

Discover the advantages

Material: AISI 316 stainless steel o nickel-plated.

Internal filter: stainless steel.

Gaskets: silicone.

Internal seeger: stainless steel

Protection grade: IP66

Temperature: -60ºC + 150ºC

Normative

  • II 2GD Ex eb IIC Gb
  • Ex tb IIIC Db

Directive and normative Atex:

  • Directiva Atex 2014/34/UE
  • EN 60079-14

Normative IECEx:

  • IEC 60079-0: 2011
  • IEC 60079-7:2015
  • IEC 60079-31: 2013

Low voltage directive and regulations:

  • Directiva de 2014/34/UE
  • EN 60079-0: 2012
  • EN 60079-7: 2015
  • EN 60079-31: 2014

Custom Made Solutions
We offer multiple solutions

Ex Air Vent Plug Breather and Drainage Valves IP66 · Glakor
Do you need solutions?
2024 product catalogues

How valve Works:
IP66 Waterproof Anti-condensation valve to facilitate air circulation by convection inside the modules, preventing the formation of condensation. Pressure differences in enclosures with a high degree of protection from moisture and dust, are the result of fluctuations in internal and external temperature. If negative pressure or vacuum dust and moisture can be absorbed by the sealed doors and can enter the hazardous area enclosure. Because moisture can not escape, condensation can occur. Allows to regulate the pressure to prevent condensation following an increase in the internal temperature.

Ex Air Vent Plug Breather and Drainage Valves IP66 · Glakor

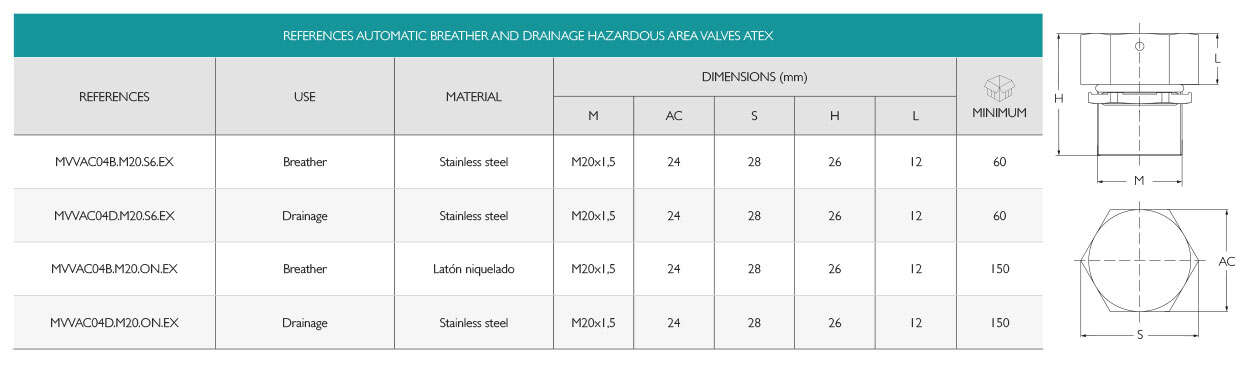

Sketches

Ex Air Vent Plug Breather and Drainage Valves IP66 · Glakor
